Ceiling Mount Split System 4000 or 8000

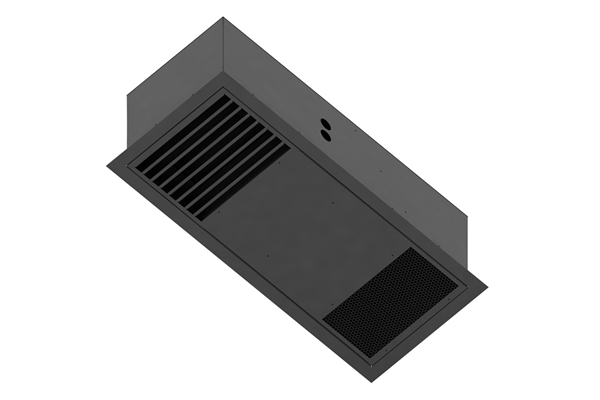

Whisperkool ceiling mount cooling unit 4000



Alternative Views:
List Price: $7,778.00



Availability: Usually Ships in 1 to 2 Weeks
Product Code: CM4000.CM8000


24 Volt Modification:

Ceiling Mount Split System:

Condenser :

Exterior Housing:

Qty:
Product Information

Product Features:

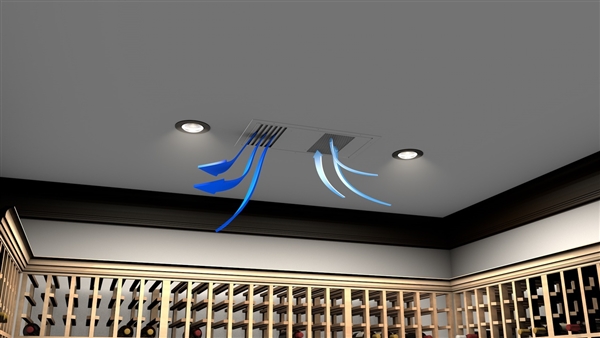

  • Offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cools and disperses the air throughout the environment.
  • Allows for maximum racking space.
  • Is virtually invisible in the cellar.
  • Designed with the highest quality, professional grade parts for longevity and performance.
  • Designed for ease of installation and accessibility.
  • Smooth, black primered finish, excellent for painting and color matching.
  • Includes a condensate pump system.
  • Low ambient control.
  • Creating a cellar environment with our new ceiling mount split system will offer the flexibility to design a beautiful environment for the aging of fine wines with a virtually invisible cooling system. Included is the quality and reliability that contractors have come to know from WhisperKOOL.
  • Optional High Efficiency 220V Condenser available

Specifications for Ceiling Mount 4000 System:
  • Cellar Size:: 1000 cu. ft
  • dBA: 58.5 dBA
  • Dimensions: 35.75" L x 12.75" H x 14.5" D
  • Weight: Evaporator: 80lbs
  • Condenser: 69lbs
  • AMPS (starting/running): Evaporator: 2/1
  • Condenser: 23.5/6.8
  • Installation: Evaporator is installed in the cellar, Condenser is installed up to 100 line ft. away.
  • Temp. Delta: 55°F temperature differential
  • Thermostat: Digital Control Display
  • Warranty: 2 year parts and labor
Specifications for Ceiling Mount 8000 System:
  • Cellar Size:: 2000 cu. ft
  • dBA: 58.5 dBA
  • Dimensions: 35.75" L x 12.75" H x 14.5" D
  • Weight: Evaporator: 80lbs
  • Condenser: 69lbs
  • AMPS (starting/running): Evaporator: 2/1
  • Condenser: 23.5/6.8
  • Installation: Evaporator is installed in the cellar, Condenser is installed up to 100 line ft. away.
  • Temp. Delta: 55°F temperature differential
  • Thermostat: Digital Control Display
  • Warranty: 2 year parts and labor
NewBTUh Rating:
There are circumstances in which a cellar design may require a larger unit due to some existing design restrictions. There are several factors such as glass, stone, concrete, etc. which will seem adequate but do not offer the insulation capacity required to maintain the optimum environment. We recommend purchasing a unit with a larger capacity to compensate for the design limitations. Please utilizing our Cellar Wizard in order to ensure you are selecting the proper cooling unit for your application. Under sized cooling units can lead to pre-mature failure and/or prevent the system from reaching the desired set temperature. As a result they are not covered under warranty.
*Pump down systems are integrated into the design of our split systems to provide our customers with the most professional and reliable split cooling systems for wine cellars.
Note: The systems do not include a line set.

- Option Details -
Exterior Housing:
The Exterior Housing protects the condenser portion of the split system from the elements when installed outdoors.
